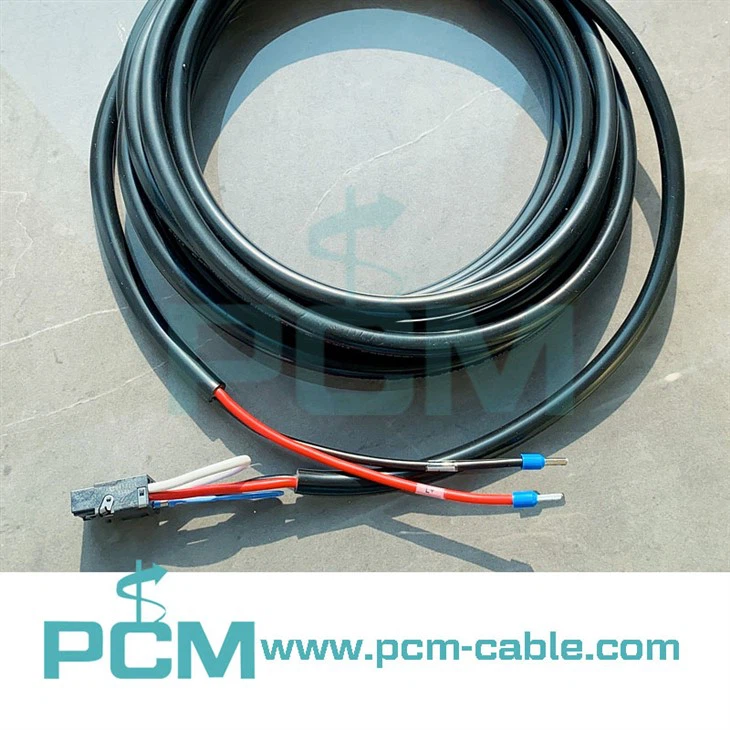

Power Cable RPM 777528/05000



Power cable RPM 777528/05000o is used to connect an Ericsson system module (Baseband 6620, BB6630) to the power system.





RPM 777 528/01500

RPM 777 528/02500 R2B Cable with connector

Ericsson Cable with Connector RPM777528/0500

RPM 777 528/10000





1. Easy, high-quality installation and maximum network performance.
2. Plug-and-play functionality.
3. Flexibility through low bend radius and modular design.



1. Power cable to connect the Baseband 6620/Baseband 6630 system module to the power system
2. Two-conductor power cable
3. Connector type: Three-pin, 2204534-1
4. Length: 5 meters (1.5m, 2.5m, 10m are optional)
5. Operating voltage of the power cord is 300 V
6. Working temperature of the power connector: -40 degree to 80 degree
7. Working voltage of the power connector - 400 V AC/DC
8. Maximum current output of the power connector with cable cross section:
0.75 mm²=10A 2.5 mm²=20 A 4.00 mm²=26 A 6.00 mm²=35 A



9. Working temperature of the power connector: -40 degree to 105 degree
10. Durability: 50 cycles
11. The cable assembly must be capable of drawing at least 178 Watts of power with a DC voltage range of -38...-58.5 V
